【Product Introduction】

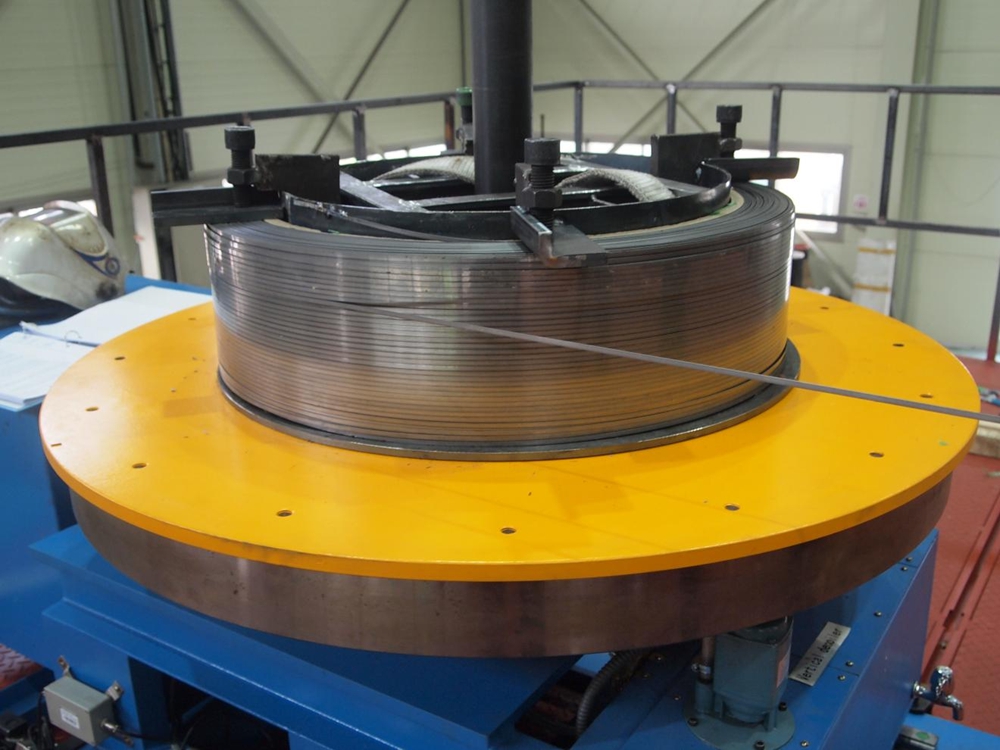

Specifically designed for precision winding of steel strip / non-woven tape on transformer cores, reactors, and large motor rotors. Featuring closed-loop tension control, the winding is tight and secure without loosening. Programmable winding angle, overlap ratio, and number of layers enable fully automatic CNC winding.

【Key Features】

✓ Closed-loop tension control for uniform and tight winding

✓ Programmable winding angle and overlap ratio

✓ Optional automatic welding device and end cutting mechanism

✓ MES data interface support

✓ Heavy-duty workpiece rotation support for stable operation

【Optional Configurations】

• Automatic Welding Device

• End Cutting Mechanism

• MES System Data Interface

【Applications】

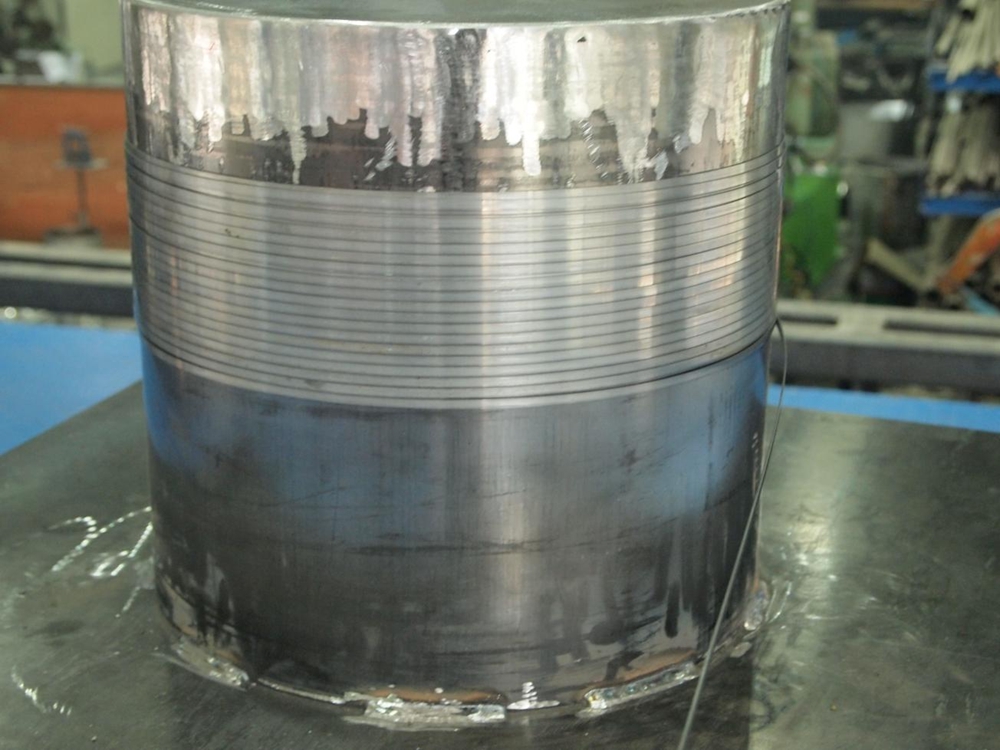

Transformer core banding, reactor banding, steel strip winding for large motor rotors

1. steel strip winding machine, CNC steel strip winder, core banding machine, transformer core winding machine

2. closed-loop tension control, programmable winding angle, overlap ratio control, automatic winding machine

3. transformer core banding, reactor banding, motor rotor steel strip winding, non-woven tape winding

4. automatic welding device, end cutting mechanism, MES data interface, heavy-duty rotation support

5. CNC steel strip winding machine for transformer cores, closed-loop tension control core bander, automatic steel strip winder with welding option

? Steel Strip Width: 20 – 80 mm (customizable)

? Maximum Winding Diameter: 1800 mm

? Tension Range: 200 – 3000 N (stepless adjustable)

? Control System: Full Chinese CNC system (English interface available)
