【Product Introduction】

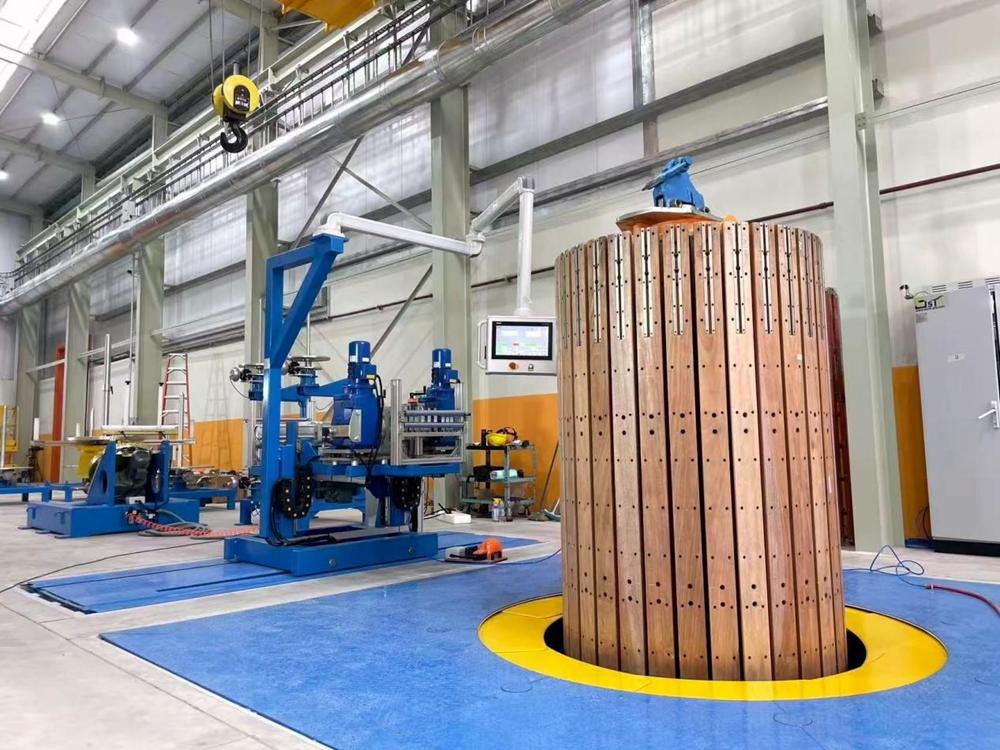

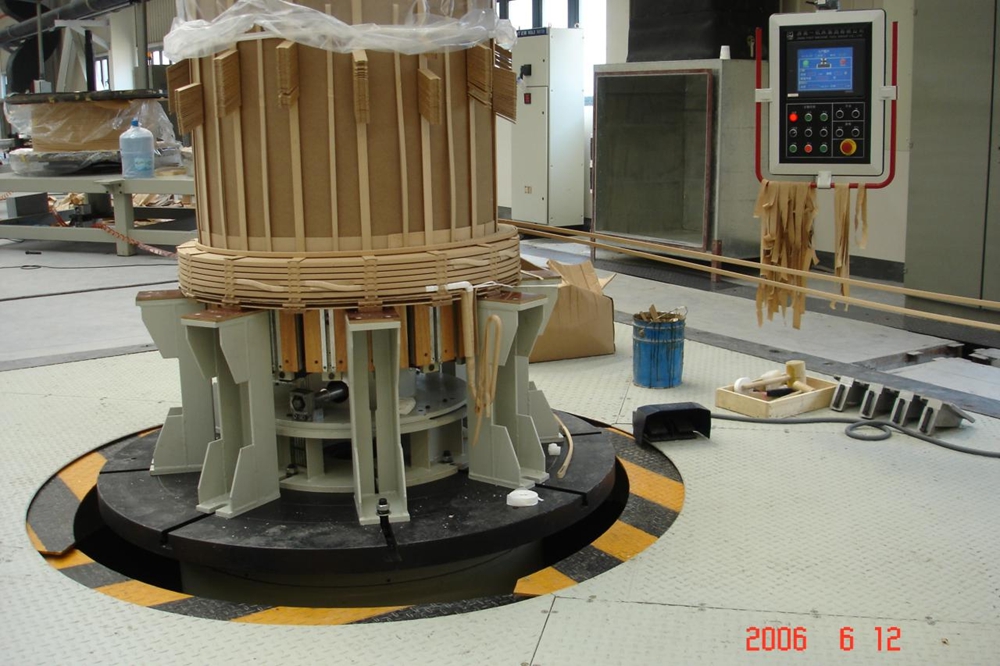

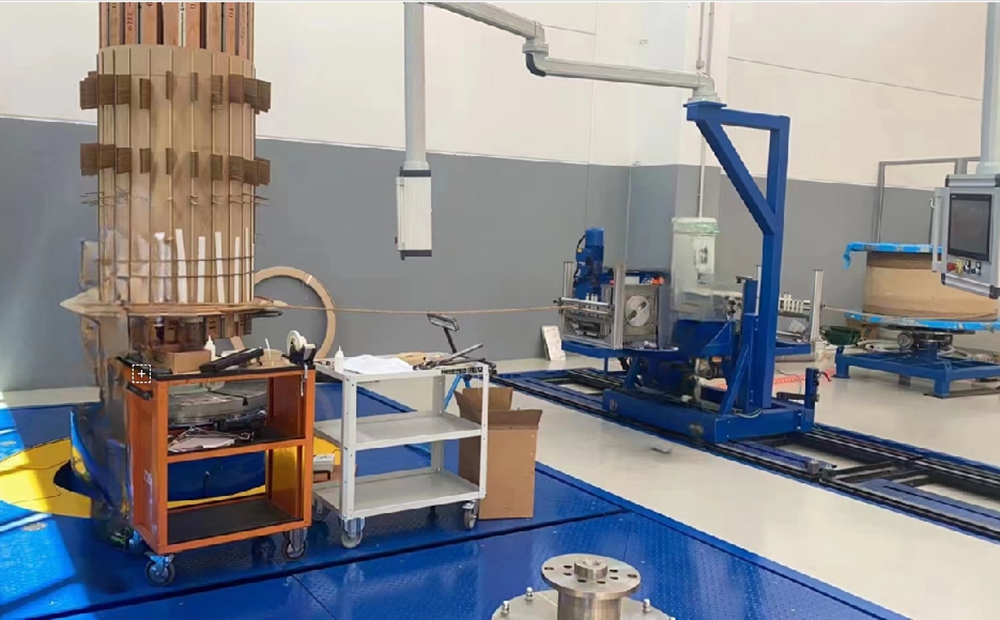

Designed specifically for the winding of traction transformer coils for high-speed rail and electric multiple units (EMUs). Available in two structural configurations: pit type (platen lifting) and floor-mounted type (operator console lifting). The machine utilizes constant tension control and servo-driven automatic wire arrangement, making it ideal for high-precision winding of round wire, flat wire, and CTC (continuously transposed cable).
【Key Features】
✓ Constant tension pneumatic control system for uniform wire arrangement

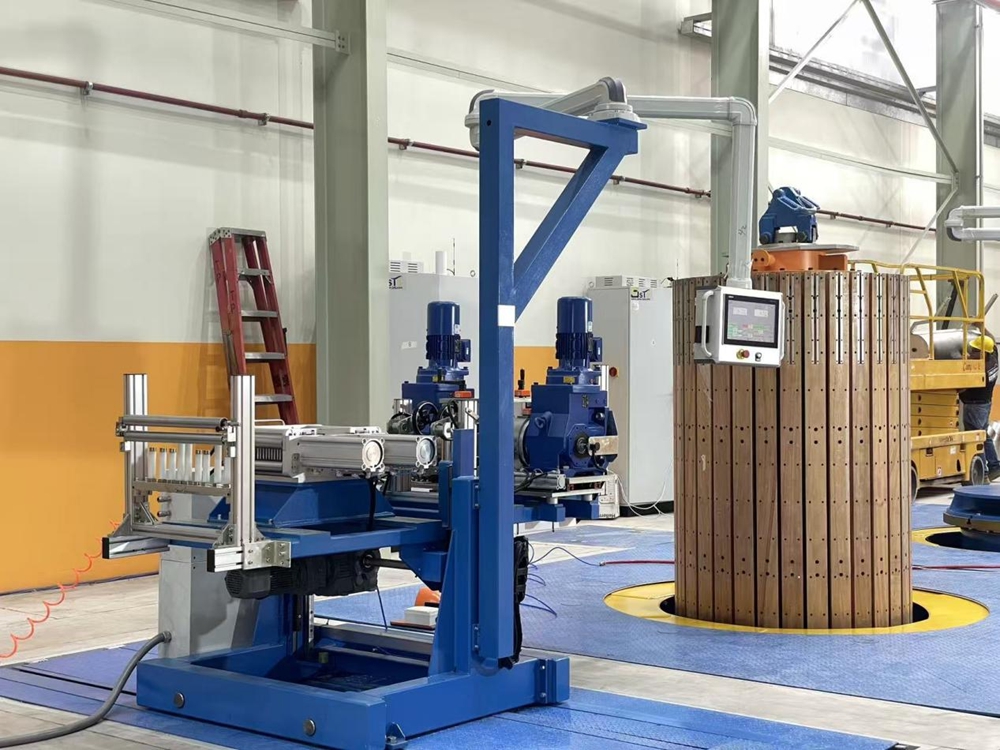

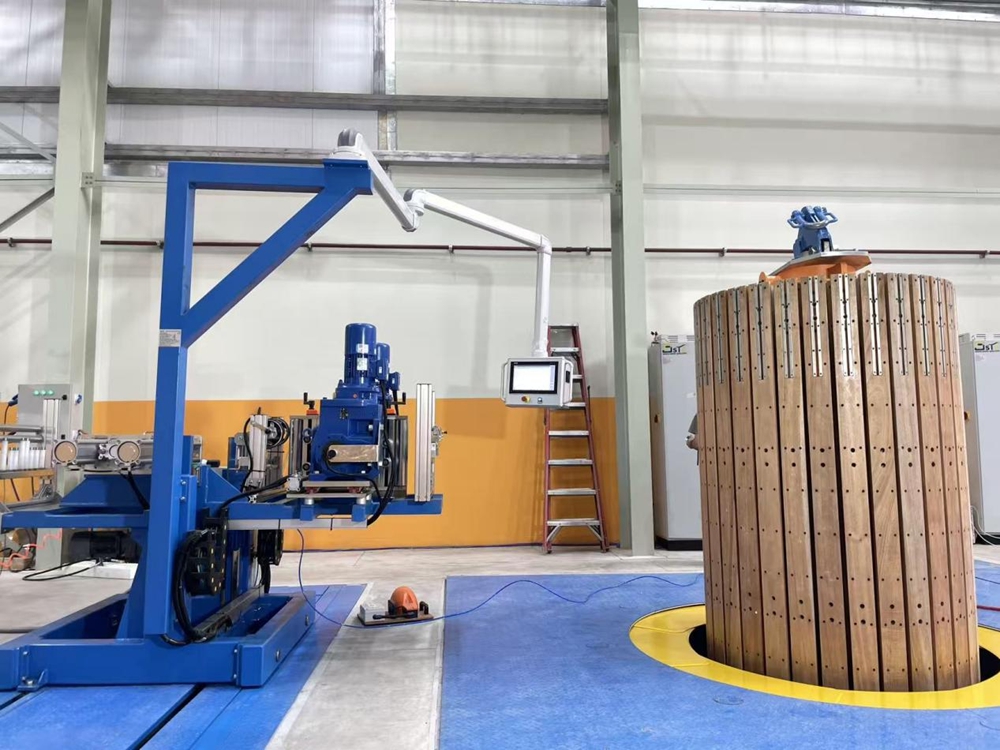

✓ Servo-driven bidirectional automatic wire laying with high repeat positioning accuracy

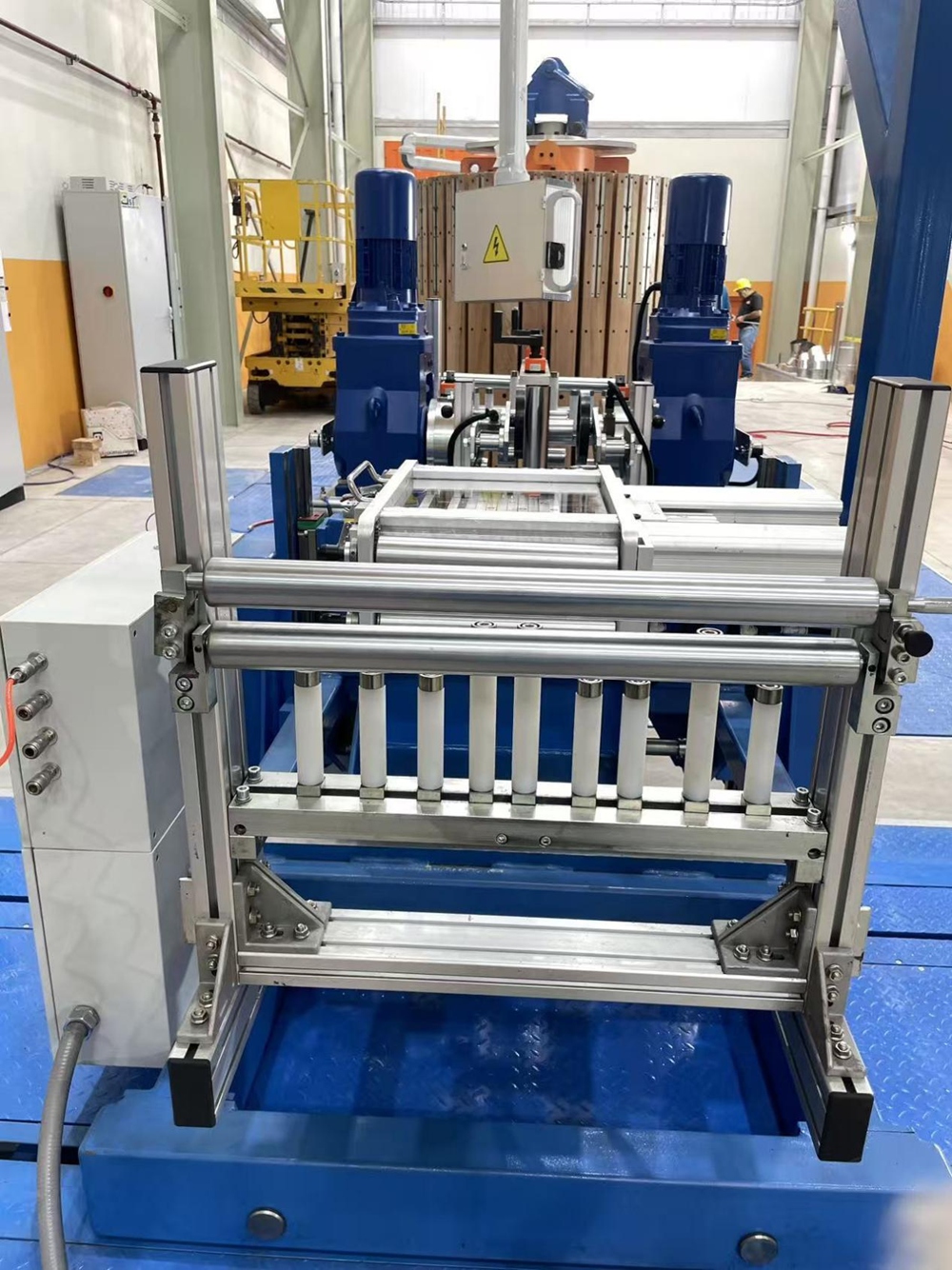

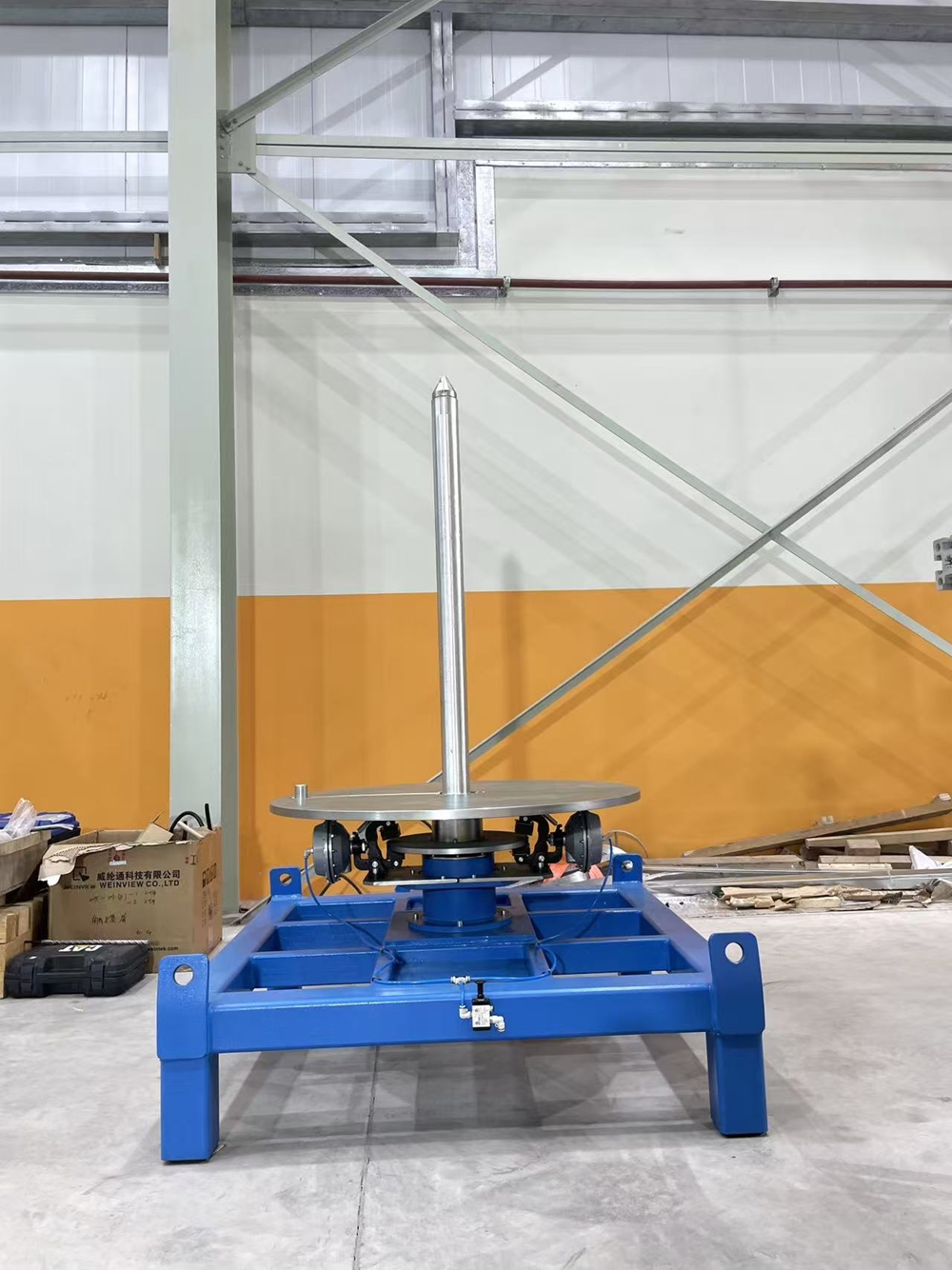

✓ Automatic wire cart tracking to prevent wire twisting and deformation
✓ Touchscreen parameterized operation with storage for multiple process recipes

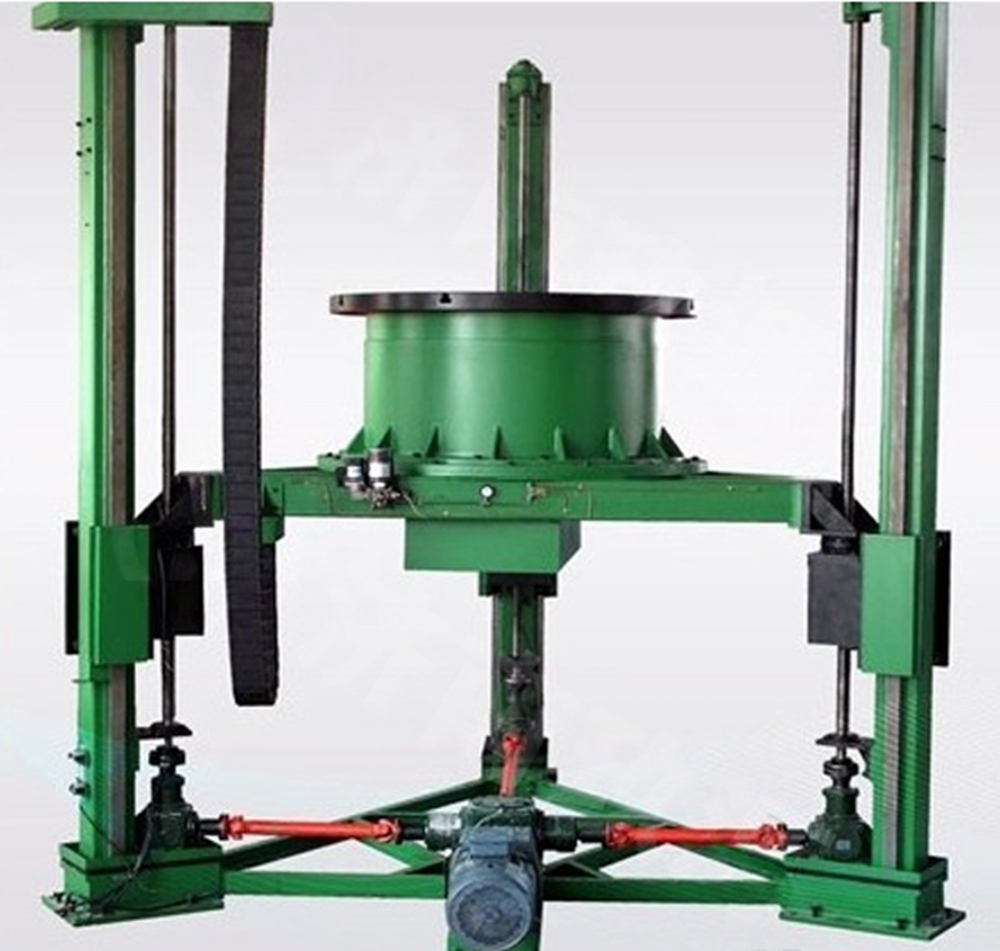

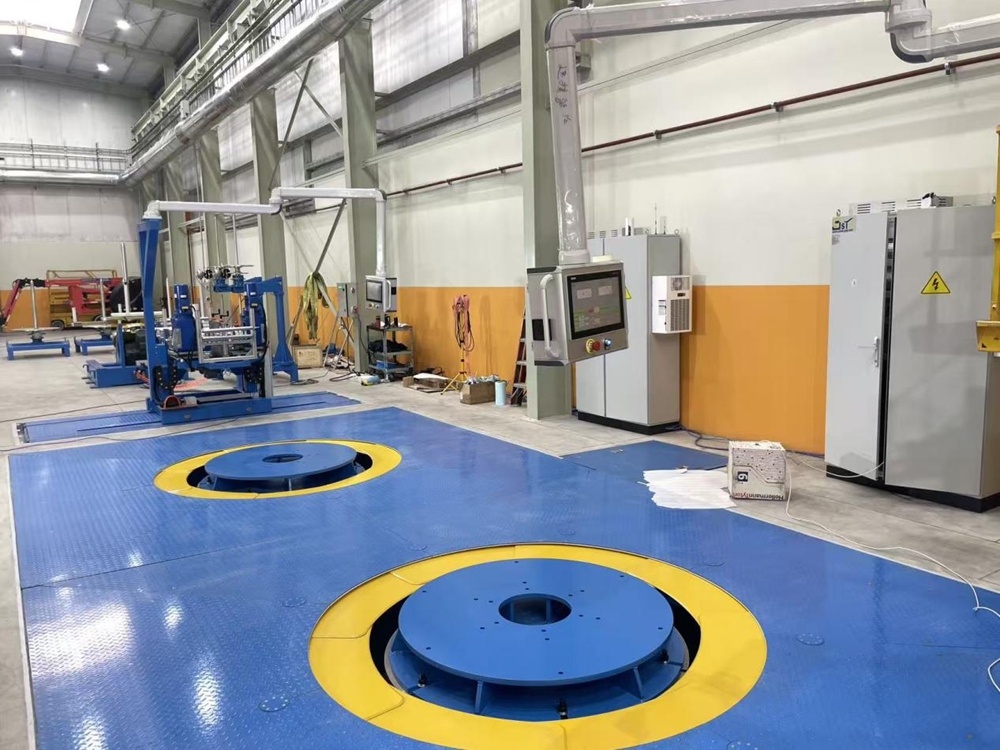

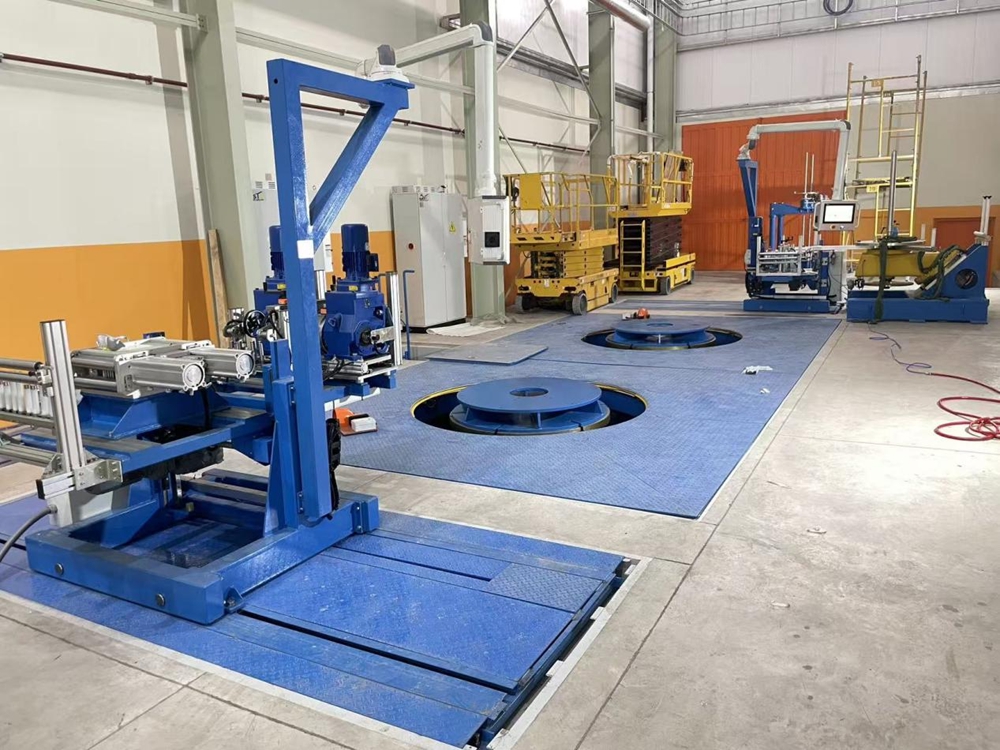

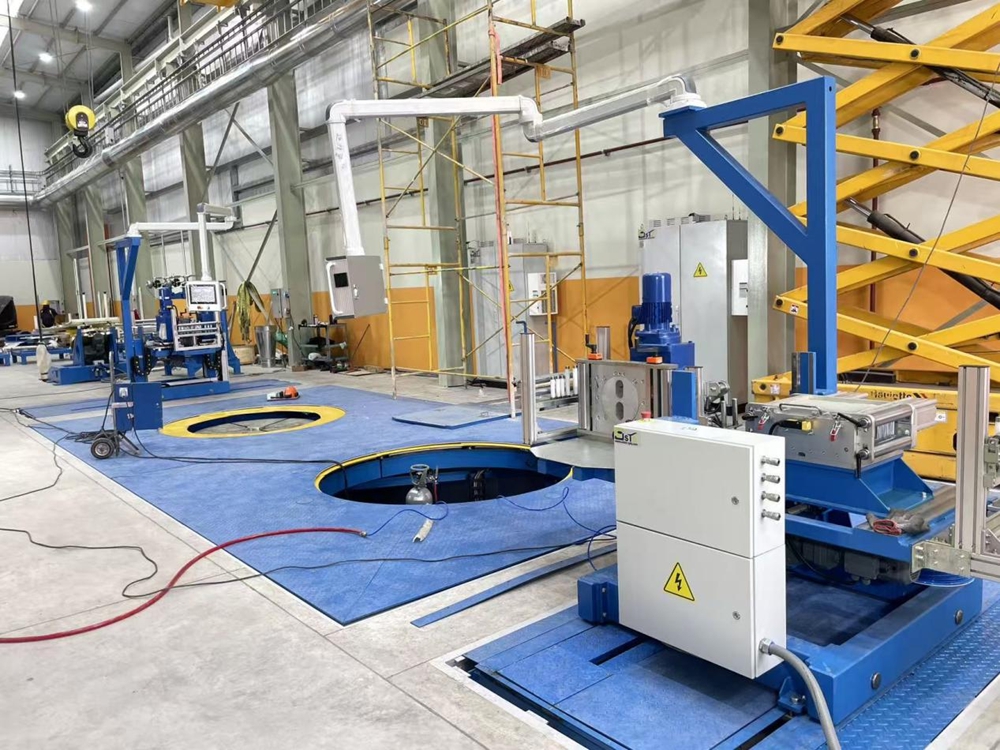

✓ Optional configurations: Pit type (platen lifting) or floor-mounted type (operator console lifting)

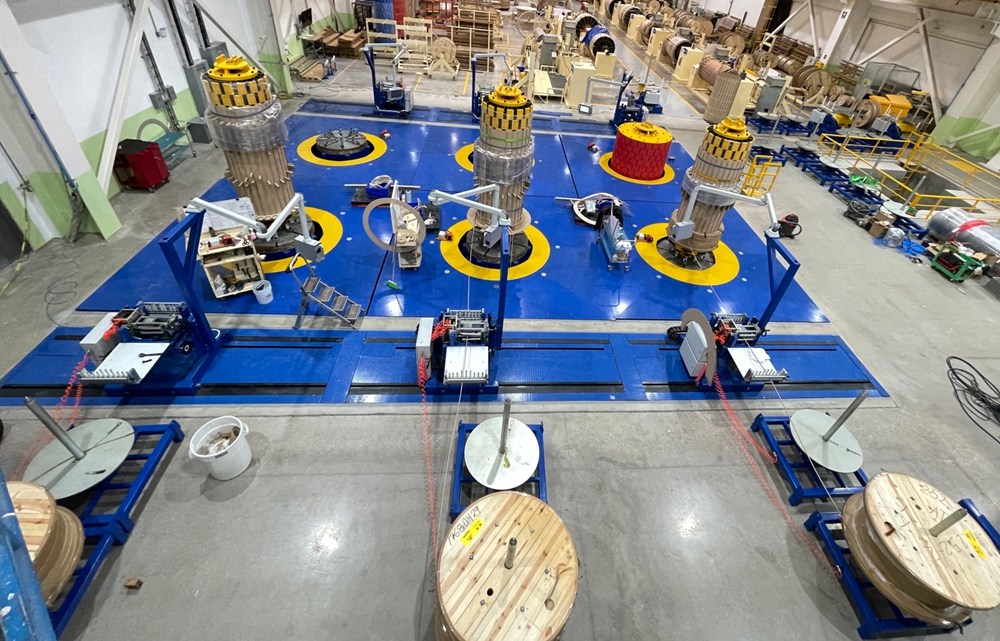

【Applications】
Winding of traction transformer coils for high-speed rail, electric multiple units (EMUs), and high-voltage power transformers.
【Technical Parameters】
? Winding Speed: 0 – 100 rpm (stepless speed regulation)
? Coil Diameter: Φ275 – Φ1000 mm
? Traverse Width: ≤ 2000 mm
? Maximum Load Capacity: 3000 kg
? Wire Specifications: Flat wire (1.2×4 mm ~ 3×15 mm), CTC (≤20×25 mm)
