Overview

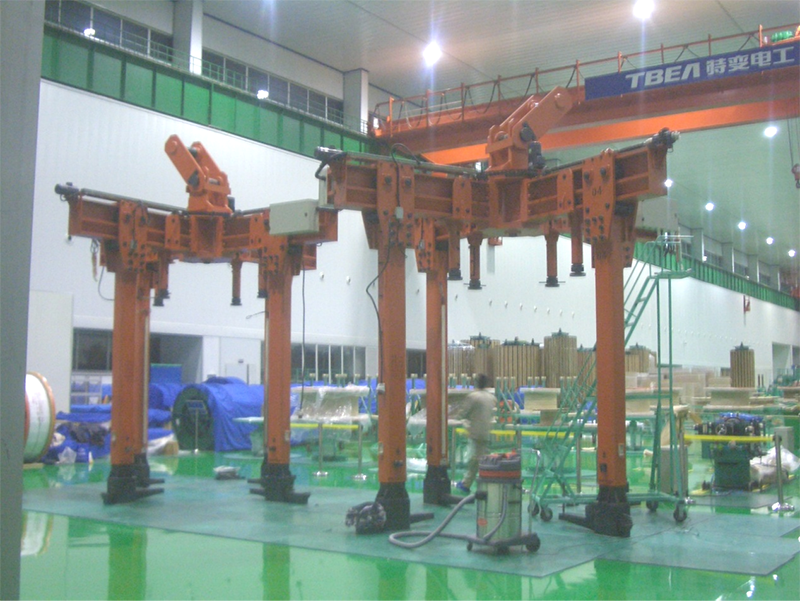

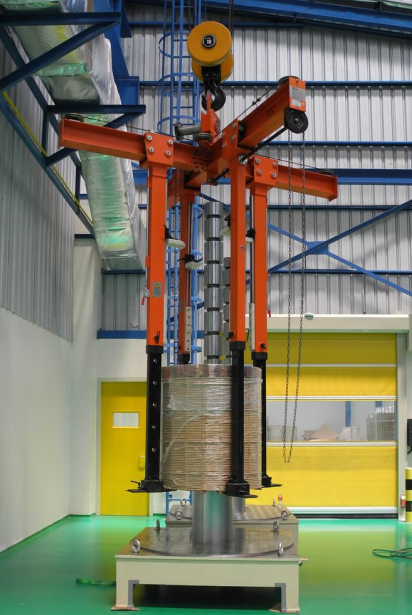

The Transformer Coil Lifting Cross is a specialized lifting device designed for the safe and efficient handling of transformer coils. Unlike standard slings or hooks, our lifting cross distributes weight evenly, prevents coil deformation, and protects delicate windings and insulation from damage. Manufactured in China with high-quality standards, this lifting tool is essential for any transformer manufacturing, repair, or rewind operation.

Key Features

Balanced lifting – Cross-shaped design ensures even weight distribution

Adjustable arms – Fits various coil inner diameters and outer diameters

Coil protection – Padded contact surfaces prevent damage to windings and insulation

Rigid construction – Heavy-duty steel for safe operation under full load

Safety hooks – Equipped with safety latches to prevent accidental release

Lifting lug – Single-point lift for easy crane or hoist attachment

Benefits

1.Electric adjustment

Prevents coil deformation during lifting

Protects delicate insulation from damage

Eliminates need for custom lifting fixtures for each coil size

Improves worker safety with secure, balanced lifting

Reduces handling time with quick adjustment

Extends coil life by preventing lifting-related damage

Typical Applications

Lifting transformer coils onto assembly platforms

Moving coils between winding, assembly, and testing areas

Positioning coils for core assembly

Loading and unloading coils from ovens or tanks

Coil handling in repair and rewind shops

All coil types: round, rectangular, and elliptical

Made in China Advantage

ISO-certified manufacturing

High-strength materials and certified welding

Load-tested before delivery

Competitive pricing for global markets

Full customization available

Proven reliability in transformer industry

Safe and balanced lifting cross for transformer coils. Adjustable arms fit various coil diameters. Protects windings and insulation. Custom capacities. Made in China.

transformer coil lifting cross, coil lifting equipment, adjustable coil lifter, transformer handling tool, coil lifting spreader, made in China lifting equipment

Mr. LEE – Export Manager
Jinan Jiuyuan Machinery Co., Ltd.
118 meters from Jiahe South Bridge, Zhangxia Street, Changqing District, Jinan City, Shandong Province, China – 250308
Tel: +86-13421423282
Fax: +86-531-87591908
Email: STOJIUYUAN@163.COM, LIQIUBOYANG@gmail.com
